POS Tagging with HMMs

An introduction of Part-of-Speech tagging using Hidden Markov Model (HMMs).

Markov chains

Consider a sequence of state variables $q_1, q_2, ..., q_i$. A first-order Markov model instantiate two simplifying assumptions.

1. The probability of a state depends only the previous state. $$\text{Markov Assumption:}\quad P(q_i=a \vert q_1 ... q_{i-1}) = P(q_i = a \vert q_{i-1})$$
2. The probability of an output observation $o_i$ depends only on the current state that produced the observation $q_i$: $$\text{Output Independence:}\quad P(o_i \vert q_1 \cdots q_i, \cdots, q_T, o_1, \cdots, o_i, \cdots,o_T) = P(o_i \vert q_i)$$

Hidden Markov Model

• A set of $N$ states: $Q = q_1 q_2 \cdots q_N$
• A transition probability matrix $A$, each $a_{ij}$ representing the probability of moving from state $i$ to state $j$, s.t. $\sum_{j=1}^N a_{ij} =1$: $$A=a_{11} \cdots a_{ij} \cdots a_{NN}$$
• A sequence of $T$ observations, each one drawn from a vocabulary $V = v_1,v_2,\cdots,v_V$: $$O=o_1 o_2 \cdots o_T$$
• A sequence of observation likelihoods, a.k.a. emission probabilities, each expressing the probability of an observation $o_t$, being generated from a state $i$: $$B=b_i(o_t)$$
• An initial probability distribution over states. $\pi_i$ is the prob. that the Markov chain will start in state $i$. Some state $j$ may have $\pi_j = 0$, meaning that they cannot be initial states. Also, $\sum_{i=1}^n \pi_i = 1$: $$\pi = \pi_1 ,\pi_2,\cdots,\pi_N$$

Training with MLE

• The initial probability $\pi$:

  $$\pi(t) = \frac{C(\text{the tag occurs in the sentence beginning})}{\text{count of sentences}}$$

• The transition probability matrix $A$ contains $P(t_i \vert t_{i-1})$:

  $$P(t_i \vert t_{i-1}) = \frac{C(t_{i-1}, t_i)}{C(t_{i-1})}$$

  where $C(t_{i-1})$ means the count of the first word’s pos tag in bigram tuples.

• The emission probability matrix $B$ contains $P(w_i \vert t_i)$:

  $$P(w_i \vert t_i) = \frac{C(t_i, w_i)}{C(t_i)}$$

Handling OOV problems

Decoding

Given as input an HMM $\lambda = (A, B)$ and a sequence of observations $O = o_1, o_2,...,o_T$, find the most probable sequence of states $Q=q_1q_2q_3...q_T$

$$\hat{t}_1^n = \arg\max_{t_1^n} P(t_1^n \vert w_1^n) \approx \arg\max_{t_1^n} P(w_1^n \vert t_1^n) P(t_1^n) \\ \approx \arg\max_{t_1^n} \prod_{i=1}^n \overbrace{P(t_i \vert t_{i-1})}^{\text{transition}} \overbrace{P(w_i \vert t_i)}^{\text{emission}}$$

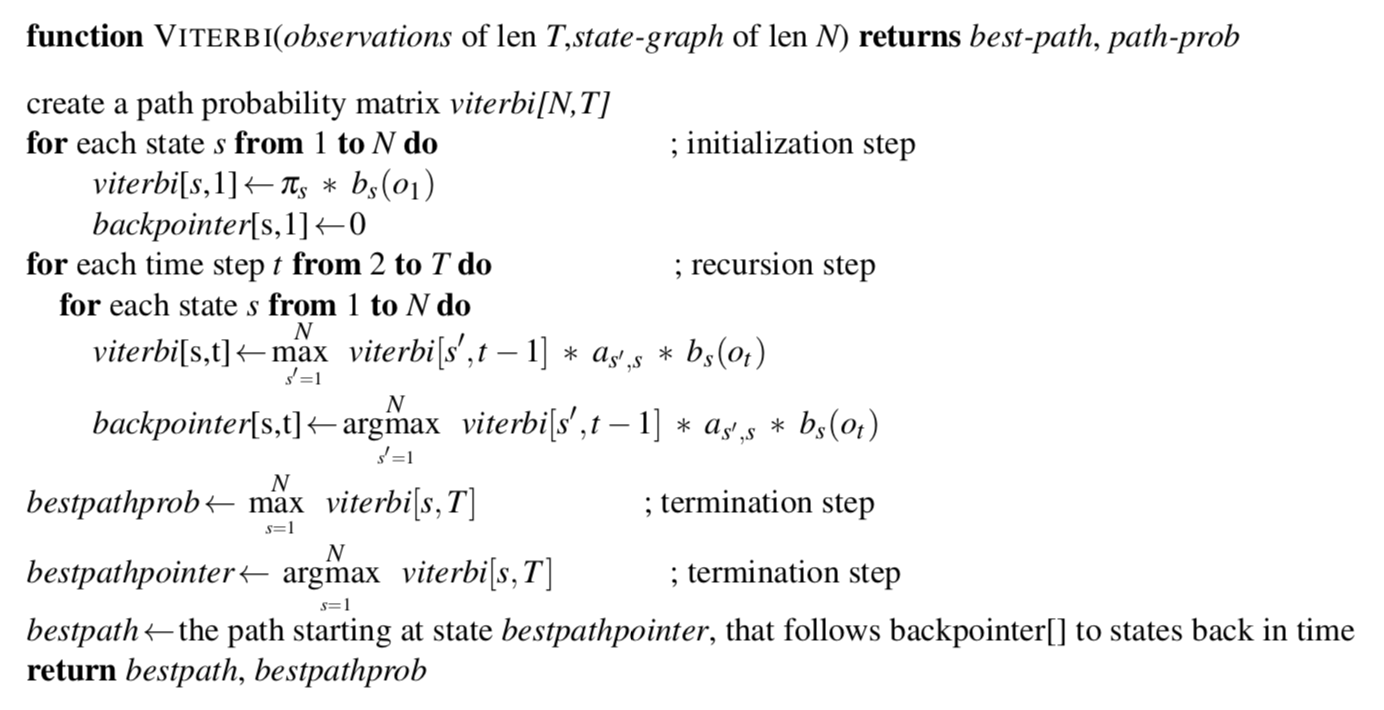

Viterbi algorithm
